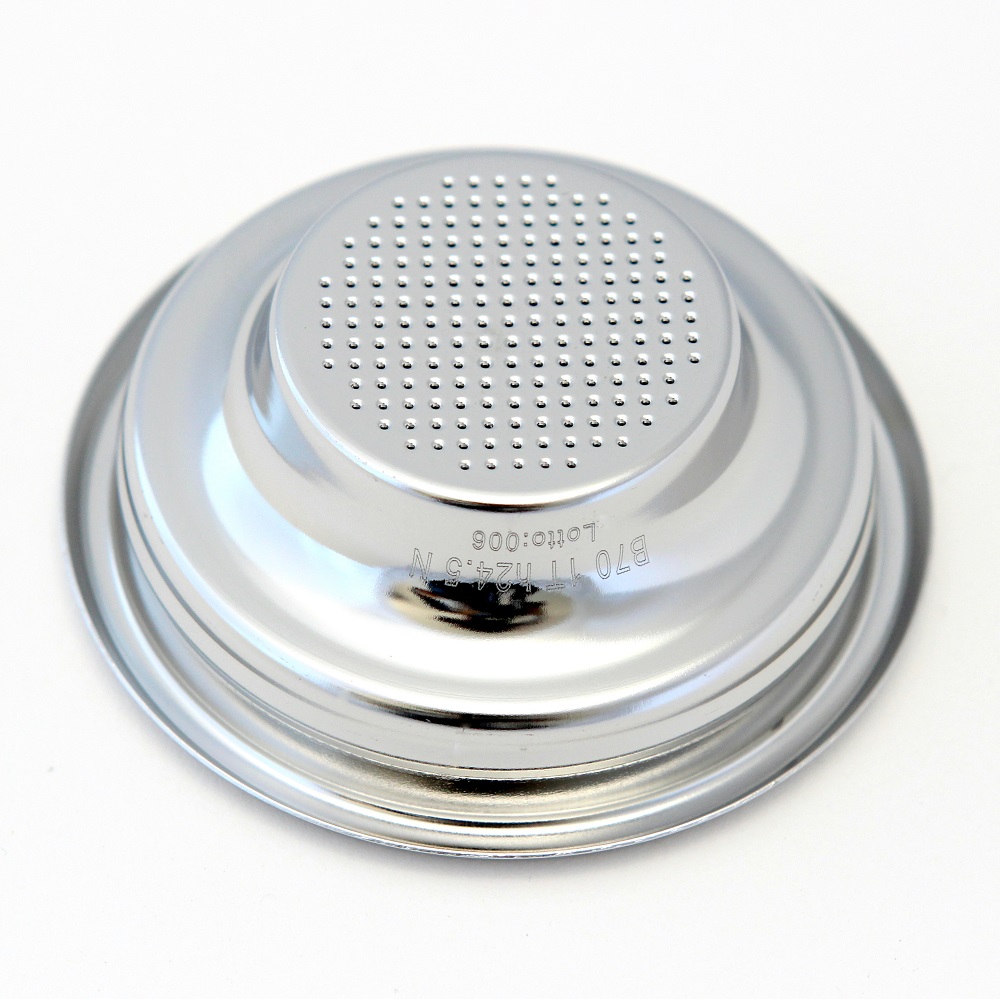

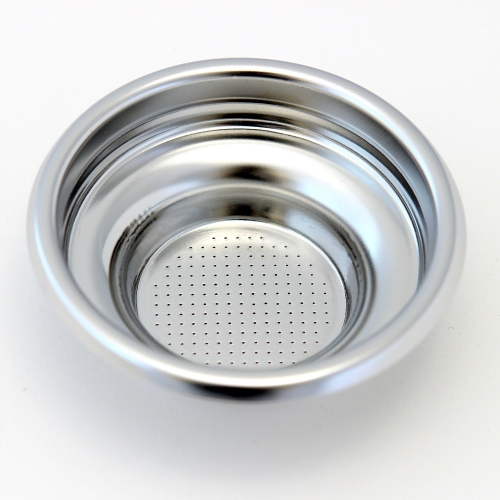

Sitko B70 1T H24,5N

B70 1T H24.5 N

DESCRIPTION

Average capacity 6/8 gr.

FEATURES

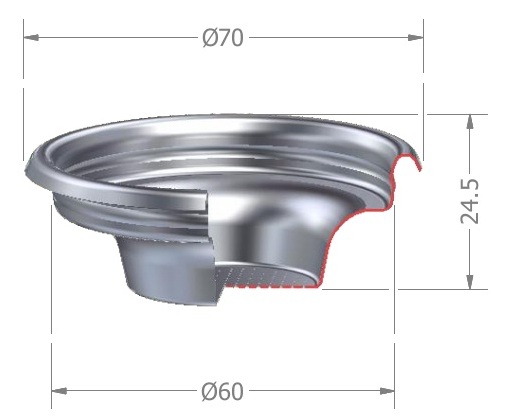

SHAPE

BORDER: Ø 70 mm (B70)

HEIGHT: 24.5 mm (H24.5)

BODY: Ø 60 mm for Ø 58 mm tamper

RIDGE: external Ø 60,5 mm

SHAPE: truncated cone with specific corner rounding

The shape was created by I.M.S. to obtain the proper ratio between the base and height of the coffee puck in relation to capacity. The lower part of the filter has a truncated cone shape. The middle section is connected to the upper body by means of specific corner rounding. This shape has been designed to exploit the whole coffee puck, and to facilitate drying and expulsion.

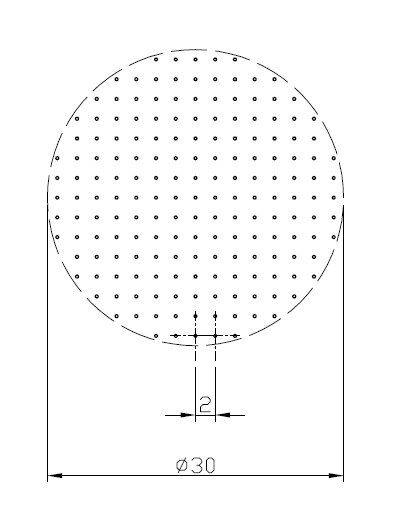

PERFORATION

I.M.S. perforation is exclusive and patented

PERFORATED AREA: Ø 30 mm

area optimized in relation to the shape of the filter.

NUMBER OF HOLES: 177 Norm Spacing (N)

The number and distribution of the perforations are designed to balance the delivery in relation to the height and shape of the filter and perforated area.

HOLE DIAMETER: 0.30 mm

SHAPE OF THE HOLE: CIRCULAR with CONICAL cross section.

COMPETITION PERFORATION: Relaminated and Recalibrated.

FINISHING

TUMBLING: Wet vibrofinishing with ceramic inserts and drying with corncob

PICKLING: Passivation and preparing of the material

ELECTROPOLISHING: smooth surface with unmatched sanitary and non-contaminating qualities is obtained.

COMPATIBILITY

Ascaso
Astoria
Bezzera
Bfc
Bianchi
Brasilia
Conti
D.I.D. L'Orchestrale
E61 standard
ECM
Elektra
Expobar
Faema
Fiorenzato
Fracino
Grimac
Iberital
Kees Van Der Westen
La Marzocco
La Nuova Era
La Pavoni
La Scala
Magister
Nuova Simonelli
Promac
Quality Espresso
Rancilio
Rocket
Royal First
SAB
Sanremo
Slayer
SV
Synesso
VFA
Vibiemme
Victoria Arduino
Wega
